Our Products

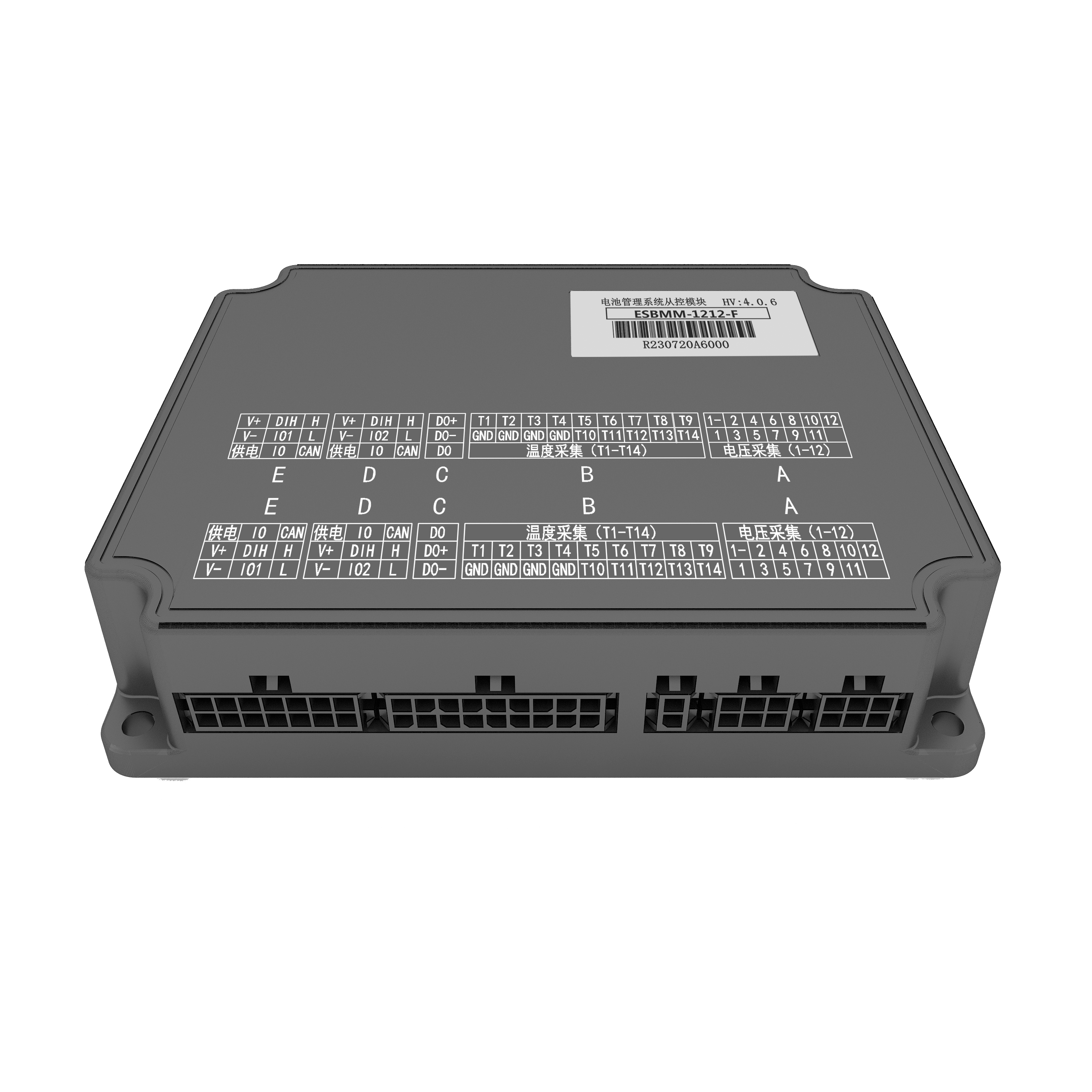

SLAVE BMS MODULE(BMM)
Responsible for real-time collecting of voltage, temperature. Provide the active or passive balancing management, thermal management of the cells. communicating with the upper level through CAN or isoSPI.
- Applicable to 12-112 strings
- Pin-to-pin compatibility
- Passive balancing, with balancing current of 100mA
- Active balancing, with balancing current of 2A

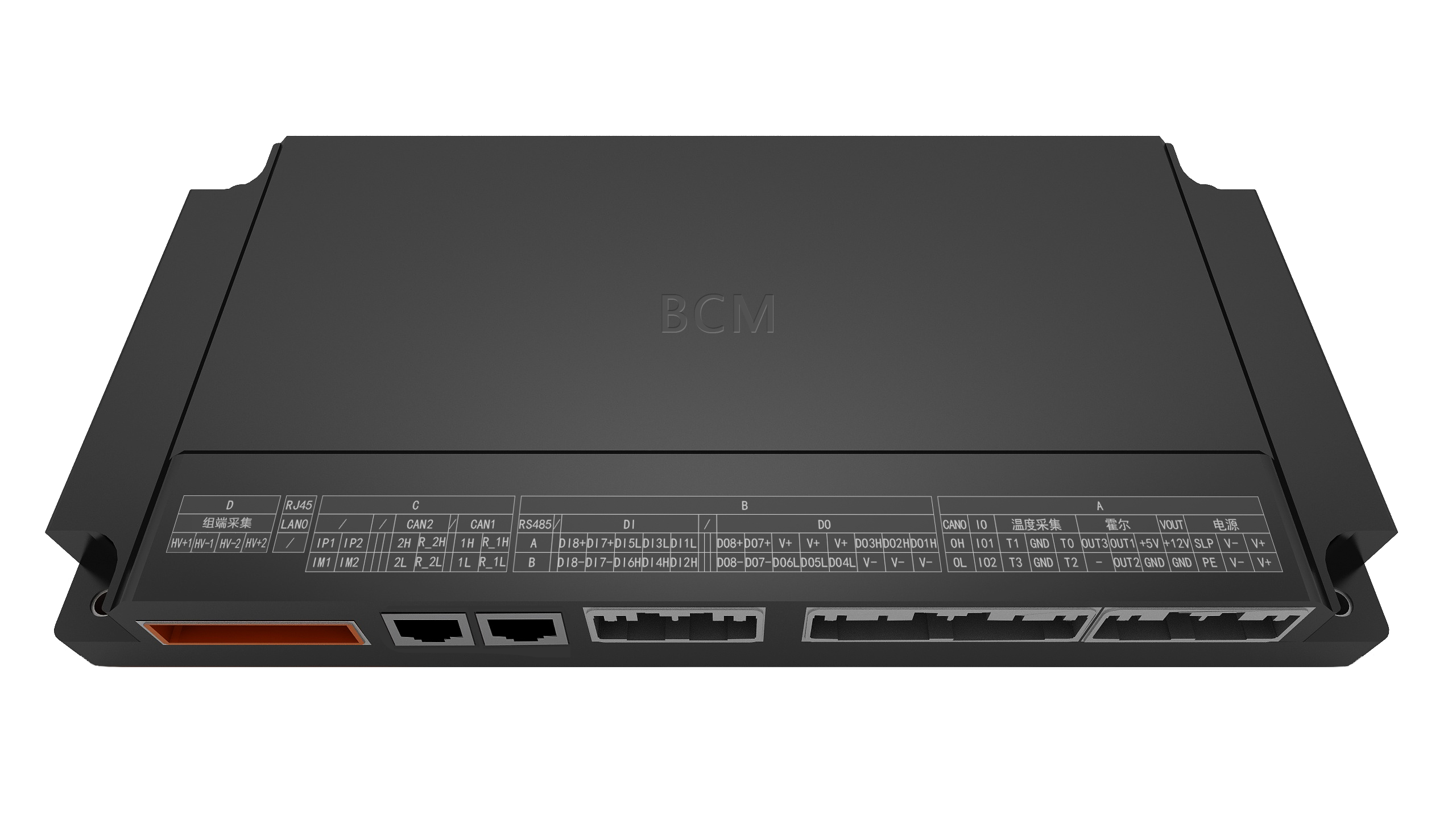

MASTER BMS MODULE(BCM)
Responsible for collecting voltage, current and temperature, calculating SOC/SOH and other states, execute balancing strategy, diagnose battery faults, and private locally protected for the rack level.
- With fault detection function and circuit cut-off protection function of limit alarm threshold
- Support active thermal management and control function
- Support CAN, RS-485 and Ethernet communication functions
- Support Bootloader upgrade

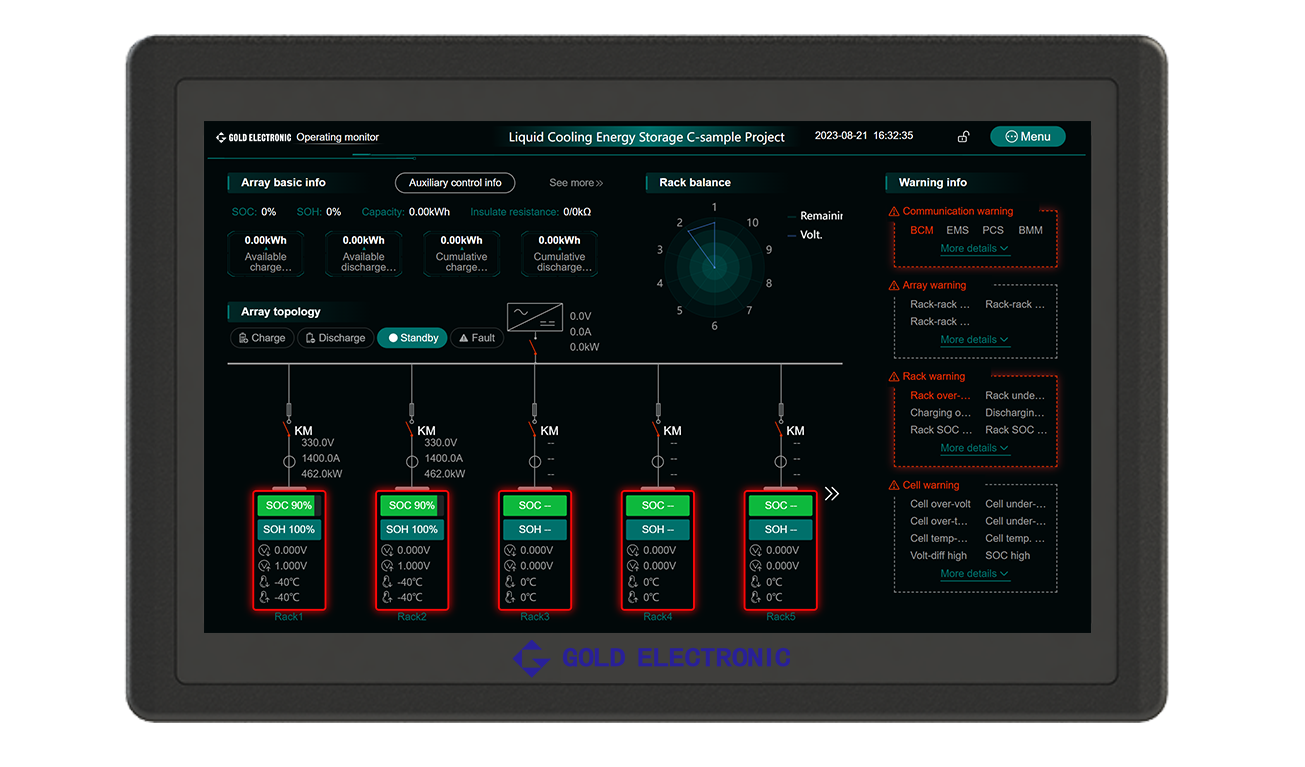

DISPLAY CONTROL MODULE(ESMU)
Responsible for summarizing and display all the data and fault diagnosis information, performs alarm and protection functions according to battery status to ensure its safety, also store data of various states of the local battery system.
- Quad core processor, 2 GHz main frequency, 4G RAM, 16G Flash
- Support IEC61850, MODBUS, MQTT IoT and other protocols
- 3*LAN、 5*RS485、3*CAN、6 channel DI/DO
- Support SDK development、Support OTA
- 256G SSD, full life cycle data storage

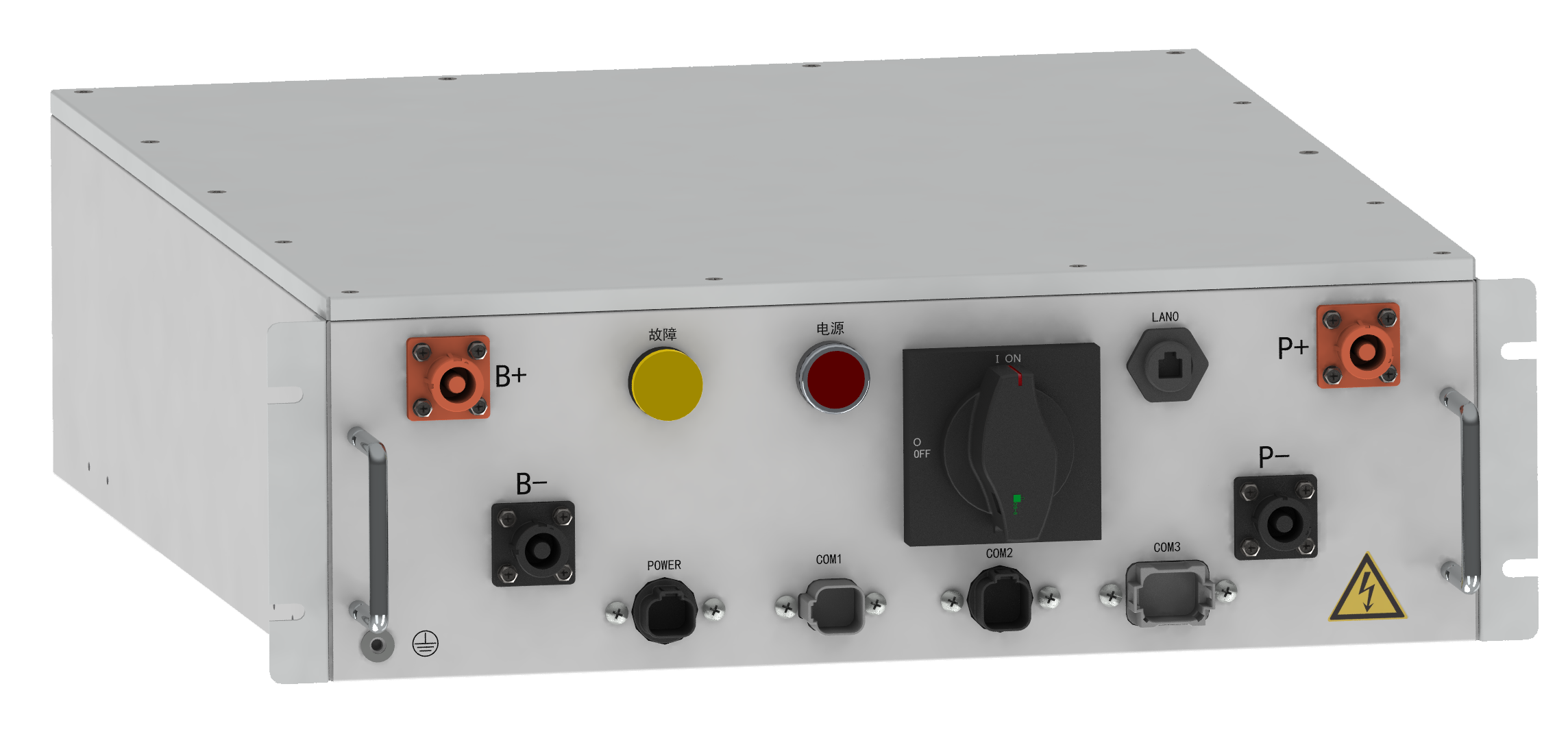

HIGH VOLTAGE BOX(ESHVB)
The management unit of the Rack level high voltage power loop, in which the BCM can be placed. Responsible loop contactor control, protection and data communication and other functions.
- Integrated circuit breakers, contactors, fuses, circulating current control circuits, current sensors, secondary BMS (ESBCM), switching power supplies
- Realize the control, protection and data communication functions of the energy storage battery rack
- Which can be customized according to the actual needs of the project
