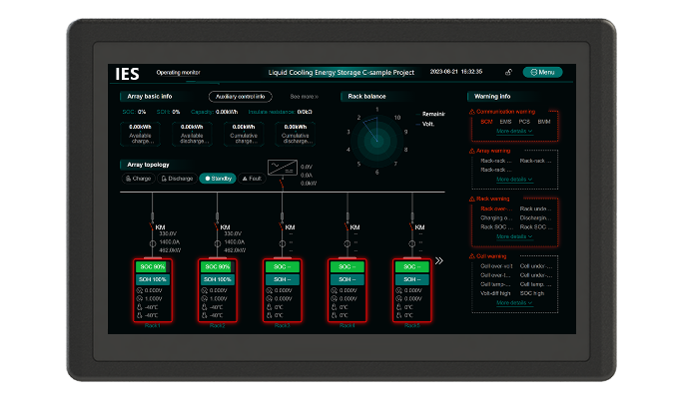

DISPLAY CONTROL MODULE(ESMU)

DISPLAY CONTROL MODULE(ESMU)

This is a control and management host designed for Energy Storage Battery Management Systems (BMS).
It performs numerical calculations, performance analysis, alarm processing,
and data logging based on the real-time battery data uploaded by the ESBCM (Secondary BMS) and ESBMM (Primary BMS).
Furthermore, it enables coordinated control with the PCS host and Energy Management System (EMS).
By optimizing the load control strategy according to power output requirements and the State of Charge (SOC) of each battery cluster,
it ensures the safe, stable, and efficient operation of the battery system.

Specifications and parameters

ESMU ESMU-10064 HV2.0.3 ESMU-64 HV2.0.3 ESMU-100256 HV2.2.0
Processor Arm Cortex-A55 Arm Cortex-A55 Arm Cortex-A53;Cortex-M4F
RAM 4GB LPDDR4 4GB LPDDR4 4GB LPDDR4
Storage 16GB eMMIC,64GB SD Card 16GB eMMIC,64GB SD Card 16GB eMMIC,256GB SSD
LAN 3*LAN;
LAN0/LAN1:100M/1000Mbps,
LAN2:10M/100Mbps		 3*LAN;
LAN0/LAN1:100M/1000Mbps,
LAN2:10M/100Mbps		 3*LAN;
LAN0/LAN1:100M/1000Mbps,
LAN2:10M/100Mbps
CAN 3*CAN;250Kbps~1Mbps 3*CAN;250Kbps~1Mbps 3*CAN;250Kbps~1Mbps
RS485 5*RS485;9600bps~19200bps 5*RS485;9600bps~19200bps 3*RS485;9600bps~19200bps
USB 2 2 None
DO 12-Channel IO outputs,
relay dry contact type		 12-Channel IO outputs,
relay dry contact type		 12-Channel IO outputs,
relay dry contact type
DI 6*DIH,6*DIL 6*DIH,6*DIL 6*DIH,6*DIL
Screen 10.1"TFT,1280*800 None 10.1"TFT,1280*800
